| Brand Name : | KONGER |
| Certification : | ISO CE |
| Price : | USD29000-100000 |
| Delivery Time : | 30-50DAYS |
| Payment Terms : | TT LC |
| Supply Ability : | 30-50SETS 30DAYS |

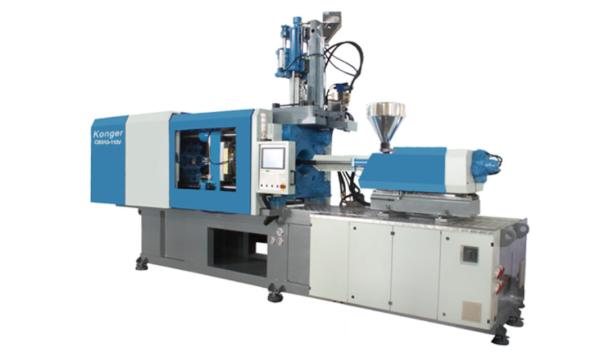

CS360-110V Vertical Multi-Color Plastic Injection Molding Machine
| DESCRIPTION | UNIT | CS360-110V | ||||
| International Size Rating | cm³ | 2418 | 358 | |||
| INJECTION UNIT | A | B | C | A | B | |
| Screw diameter | mm | 65 | 70 | 75 | 35 | 38 |
| Screw L:D ratio | l/d | 22.5 | 21 | 19.6 | 22.8 | 21 |
| Shot volume | cm3 | 1161 | 1347 | 1546 | 163 | 192 |
| Shot weight(PS) | g | 1057 | 1226 | 1407 | 148 | 175 |
| Injection rate | cm³/s | 337 | 368 | 422 | 90 | 104 |
| Injection pressure | mpa | 208 | 179.6 | 156 | 219 | 186 |
| Max.screw speed | r/min | 155 | 205 | |||
| CLAMPING UNIT | ||||||
| Clamping force | kn | 3600 | ||||
| Opening stroke | mm | 615 | ||||
| Space between tie bars | mm | 670x650 | ||||
| Max.mold height | mm | 680 | ||||
| Min.mold height | mm | 250 | ||||
| Ejector stroke | mm | 160 | ||||
| Ejector force | kn | 100 | ||||
| POWER UNIT | ||||||
| Systerm pressure | mpa | 160 | ||||
| Pump motor | kW | 36.7 | 11 | |||
| Heating capacity | kW | 24.6 | 7.55 | |||
| GENERAL | ||||||
| Oil tank capacity | l | 650 | ||||
| Machine dimension(L×W×H) | m | 7.1X1.9X3.8 | ||||
| Machine weight | t | 13.9 | ||||
|
|
