3 Years
| Ask Lasest Price | |
| Brand Name : | KONGER |
| Certification : | ISO CE |
| Price : | USD21000-80000 |
| Delivery Time : | 30-60DAYS |
| Payment Terms : | TT LC |
| Supply Ability : | 30-40SETS 30DAYS |

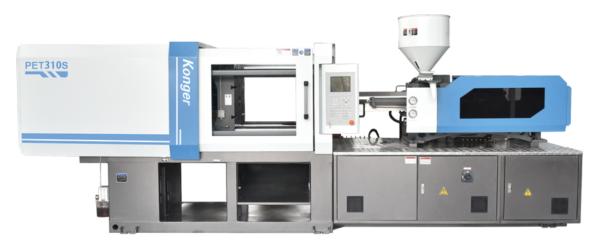

PET310S/1500 Pet Prefrom Injection Molding Machine
| DESCRIPTION | UNIT | PET310S/1500 |
| Injection Unit | ||
| Screw Diameter | mm | 70 |
| Screw L/D Ratio | l/d | 25:1 |
| Shot Volume | cm3 | 1300 |
| Injection Weight(PET) | g | 1521 |
| Injection Rate | cm3/s | 312 |
| Injection Pressure | mpa | 143 |
| Screw speed | RPM | 170 |
| Clamping Unit | ||
| Clamping force | kn | 3100 |
| Toggle Stroke | mm | 600 |
| Space Between Tie-Bars(WxH) | mm | 630× 630 |
| Max. Mold Height | mm | 220 |
| Min. Mold Height | mm | 600 |
| Ejector Stroke | mm | 150 |
| Ejector Tonnage | kn | 100 |
| Others | ||
| Max. Pump Pressure | mpa | 16 |
| Motor Power | kW | 47 |
| Heater Power | kW | 25.8 |
| Machine Dimension | mm | 7.21×1.66×2.37 |
| Machine Weight | ton | 9.5 |
|
|
